Specifications
- Type: Outrunner

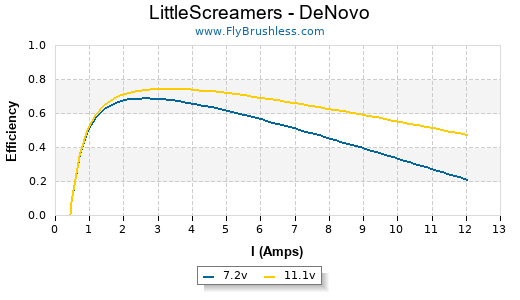

Constants
- kV: 1200
- Rm: 0.47
- Io: 0.45
Io Test Data
Bruce Abbot test results
| Volts | Amps | RPM |
|---|---|---|
| 7 | 0.35 | 8250 |
| 10 | 0.45 | 11850 |
Test Data
Bruce Abbot test results
| Propeller | Gear Ratio | Volts | Amps | Watts | RPM | Speed (mph) | Thrust (g) | Thrust (oz) | RPM as % of Kv*V |
|---|---|---|---|---|---|---|---|---|---|
| GWS EP 6x3 | 1 | 7 | 1.3 | 9 | 7699 | 21.9 | 76 | 2.68 | 92% |
| GWS EP 6x3 | 1 | 10 | 2.3 | 23 | 10610 | 30.1 | 138 | 4.87 | 88% |
| GWS EP 6x5 | 1 | 7 | 2.6 | 18 | 6971 | 33.0 | 122 | 4.30 | 83% |
| GWS EP 6x5 | 1 | 10 | 4.5 | 45 | 9246 | 43.8 | 218 | 7.69 | 77% |
| GWS EP 7x3.5 | 1 | 7 | 1.9 | 13 | 7335 | 24.3 | 115 | 4.06 | 87% |
| GWS EP 7x3.5 | 1 | 10 | 3.3 | 33 | 9969 | 33.0 | 229 | 8.08 | 83% |
| GWS EP 7x6 | 1 | 7 | 4.4 | 30 | 5900 | 33.5 | 195 | 6.88 | 70% |
| GWS EP 7x6 | 1 | 10 | 7.2 | 72 | 7522 | 42.7 | 330 | 11.64 | 63% |
| APC SF 8x3.8 | 1 | 7 | 4.3 | 30 | 5923 | 21.3 | 231 | 8.15 | 71% |
| APC SF 8x3.8 | 1 | 10 | 7.3 | 73 | 7414 | 26.7 | 383 | 13.51 | 62% |
| GWS EP 8x4 | 1 | 7 | 3.4 | 23 | 6459 | 24.5 | 206 | 7.27 | 77% |
| GWS EP 8x4 | 1 | 10 | 5.9 | 59 | 8359 | 31.7 | 354 | 12.49 | 70% |
| GWS EP 8x4.3 | 1 | 10 | 6.5 | 65 | 7977 | 32.5 | 381 | 13.44 | 66% |
| GWS HD 8x6 | 1 | 7 | 4.8 | 33 | 5647 | 32.1 | 211 | 7.44 | 67% |
| GWS EP 8x6 | 1 | 10 | 7.8 | 78 | 7046 | 40.0 | 347 | 12.24 | 59% |
| APC SF 9x4.7 | 1 | 7 | 5.6 | 39 | 5155 | 22.9 | 281 | 9.91 | 61% |
| GWS EP 9x5 | 1 | 7 | 5 | 35 | 5469 | 25.9 | 260 | 9.17 | 65% |
| GWS EP 10x6 | 1 | 7 | 6.1 | 42 | 4849 | 27.6 | 311 | 10.97 | 58% |
