Turnigy - SK3530-1400

Specifications

Type: Outrunner
Weight: 112.00g (3.95oz)
Diameter: 35.00mm (1.38in)
Length: 30.00mm (1.18in)
Shaft Diameter: 4.00mm (0.16in)
Maximum Amps: 32
Maximum RPM: 20000

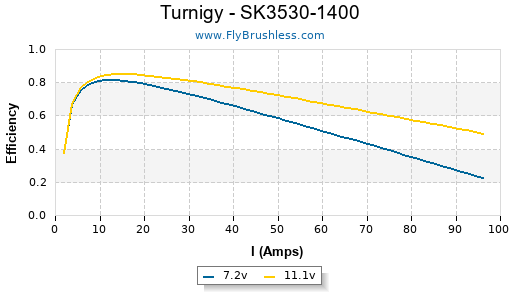

Constants

kV: 1400
Rm: 0.058
Io: 1.2

Io Test Data

mark_q test results

Volts	Amps	RPM
12.1	0.98	14750

Test Data

mark_q test results

Propeller	Gear Ratio	Volts	Amps	Watts	RPM	Speed (mph)	Thrust (g)	Thrust (oz)	RPM as % of Kv*V
APC E 9x6	1	11.23	28.01	314	10300	58.0	1247	43.99	66%
APC SF 10x4.7	1	10.86	35.22	382	9050	40.0	1446	51.01	60%
APC E 10x5	1	11.14	29.24	325	10050	47.0	1588	56.02	64%
Zoar 11x5	1	11.02	32.19	354	9600	45.0	1616	57.00	62%

Comments

Please excuse the confusion as the values for thrust are not correct. The original values were in oz but were put in the "Thrust (g)" column. It should read:

APC E 9x6 1247g/44oz
APC SF 10x4.7 1588g/56oz
APC E 10x5 1446g/51oz
Zoar 11x5 1616g/57oz

-Mark

Hi Robert
I have one of these on order and will have some test results with a 3 Blade prop very shortly.
If I am not telling my grandmother to suck eggs this motor as with many others comes in various guises.XYH35-30 1400kv 15A and PPO-3530-1400 to name but two.
Great Web Site !
Keep up the good work
Jon

Mine is sold as an XYH35-30 1400kv 15A and weighs 77 grams.Question your 112 grams.
Got it on test as soon as it arrived. Battery EVO 25 3s1p 3700, ESC GWS 40A,Prop GWS 8x4 3 Blade reverse rotation. Got 11,700 RPM @ 198 Watts, 19.7 Amps, 10.1 Volts. Then I tried a 3 Blade Master Airscrew normal rotation 7x4. Got 12,220 RPM @ 151 Watts, 15.4 Amps, 9.8 Volts.
No thrust data yet, building a rig.
Cheers
Jon

Correction mine is equivalent to a TR3536 B 1400
Not a SK3530-1400

Sorry for the error

Jon
