AXI - 2826/10

Specifications

  • Type: Outrunner
  • Weight: 181.44g (6.40oz)
  • Diameter: 34.92mm (1.37in)
  • Length: 57.15mm (2.25in)
  • Shaft Diameter: 5.00mm (0.20in)
  • Maximum Amps: 30

Constants

  • kV: 920
  • Rm: 0.042
  • Io: 2.08

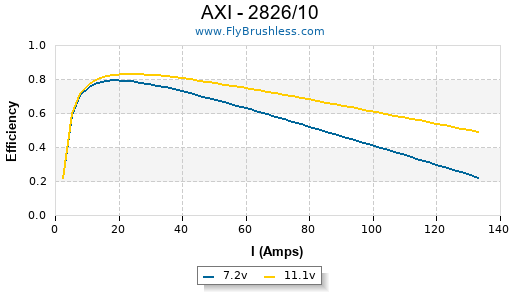

AXI - 2826/10 Efficiency Graph

Io Test Data

mark_q test results
Volts Amps RPM
15.83 2.08 14750

Test Data

mark_q test results
Propeller Gear Ratio Volts Amps Watts RPM Speed (mph) Thrust (g) Thrust (oz) RPM as % of Kv*V
APC E 9x6 1 14.86 29.61 440 11750 66.0 1673 59.01 86%
APC E 10x7 1 14.9 38.66 576 11200 74.0 2098 74.00 82%
Zoar 11x5 1 15.08 35.59 536 11550 54.0 2353 83.00 83%
APC E 11x7 1 14.79 49.68 734 10400 68.0 2325 82.01 76%

Comments

by mark_q on Sep 3, 2009 @ 05:54 PM Report
Please excuse the confusion as the values for thrust are not correct. The original values were in oz but were put in the "Thrust (g)" column. It should read:

APC E 9x6 1673g/59oz
APC E 10x7 2098g/74oz
Zoar 11x5 2353g/83oz
APC E 11x7 2325g/82oz

-Mark
by rgoble on Sep 9, 2009 @ 09:04 PM Report
Sorry about that, it was a mistake on my part when I was entering his data. It is now fixed.

Robert
